Building Block View

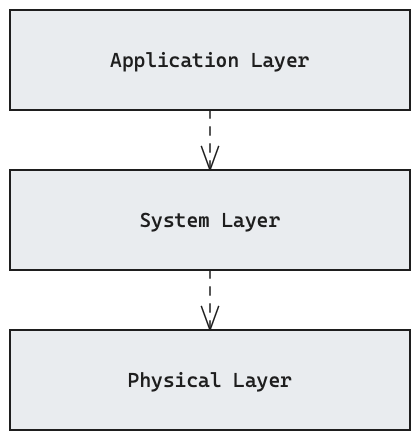

Whitebox Overall System

Motivation

Quantum software is highly complex, so we use a layered architecture to decompose such systems into three layers: the application, system, and physical layer. We rectify this decision with the following three perspectives:

  • Abstraction: Software in the application layer is implemented on a high level and independently from concrete quantum devices. The system layer compiles high-level specifications into device-specific instructions and software in the physical layer targets specific devices with low-level control.
  • Skills: Developing software for the application layer requires abstract knowledge of quantum computing (e.g. the circuit model) but no understanding of its physical implementations is required. For working on the system layer, developers need to have a broad understanding of various quantum device architectures and deployment concerns. Detailed knowledge for concrete quantum devices is required to program and operate quantum backends in the physical layer.
  • Operation: In the application layer, manual programming or specification for individual use cases is required. Compilation in the system layer is mostly automated with only high-level compilation settings needing to be configured. Execution on the physical layer is fully automated.

Contained Building Blocks

Application Layer

This layer will involve use-case-specific quantum and hybrid programs, written in high-level languages using algorithms, SDKs and libraries.

Quality Characteristics
  • The architecture layer must be extensible for new algorithms and abstractions.

TODO

These characteristics are not measurable yet and do not set a target value!

System Layer

The system layer is responsible for compiling high-level program specifications from the application layer to low-level, device-specific instructions to be executed in the physical layer, taking into account the quantum device architecture (e.g. superconducting vs. neutral atom, topology / connectivity) and possibly HPC concerns.

Quality Characteristics
  • The physical layer must be extensible for new quantum device architectures.
  • The physical layer must be extensible for new quantum compilation passes.
  • The physical layer should be extensible to work with different intermediate representations.
  • The physical layer should minimise execution cost by optimising generated instructions.

Physical Layer

The physical layer executes the programs it receives from the system layers by controlling the physical quantum device. It is also responsible for calibrating the device and monitoring it (e.g. fidelities).

Quality Characteristics
  • The classical co-processor must be able to run decoders in real-time.

Important Interfaces

TODO

The interfaces are still to be determined. The interface between the application and system layer will involve some form of program specification (e.g. source code, circuits or MLIR representations) as well as some compiler configuration (e.g. whether to use error correction or which quantum device to target) and result passing (e.g. callbacks or return values). The interface between the system and physical layer will be some low-level program specification to be run on quantum devices and co-processors, and it involves the reporting of final results as well as monitoring data.

Level 2

Info

The internal architecture of each layer is under the authority of the respective team. This section shallowly digs into the details the layers nonetheless to give an overview of each layer's responsibilities. Understanding this separation of concerns is a necessary precondition for analysing the interfaces between the layers.

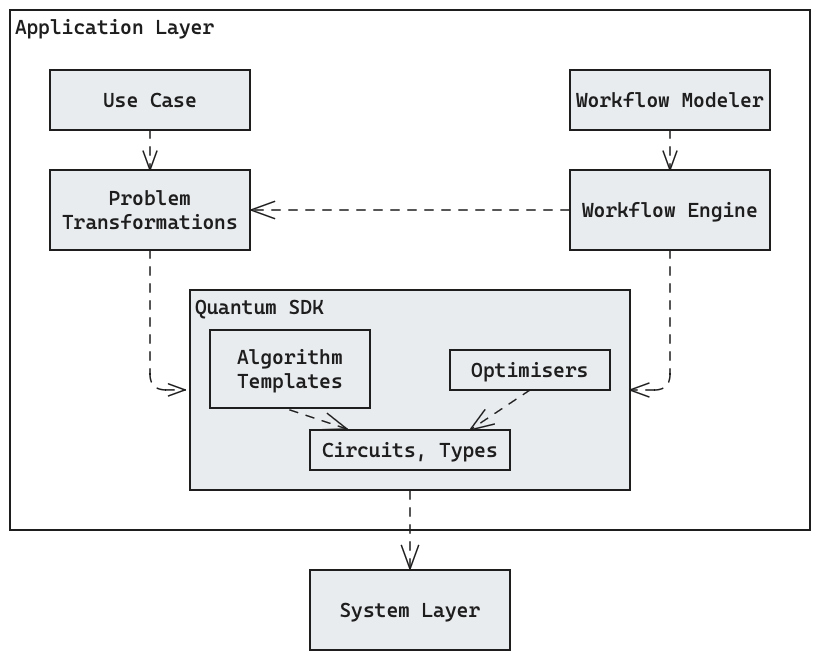

White Box Application Layer

Motivation

A lot of different software components exist that can be classified as part of the application layer and the above figure presents a rough sketch of their dependencies. Most quantum software that is freely available today makes use of (usually python-based) SDKs to build quantum circuits. Furthermore, many tools exist for transforming various scientific, engineering and commercial problems into quantum formulations, and there exist several tools for configuring these transformations in a low-code manner. Fully developed quantum solutions will likely have to implement a custom component in the long term to interface between existing systems and the quantum software stack.

Contained Building Blocks

  • Use Case: This component encapsulates the configuration of the quantum software stack for a specific use case. It is also responsible for interfacing with external systems if the quantum application is to be integrated into an existing IT system. As such, use case components are highly specific for the context they are used in and should be seen as an adapter rather than including complex logic.
  • Problem Transformations: This component is symbolic for the many available tools for transforming scientific, engineering and commercial problems into quantum formulations. Many of these tools use Algorithm Templates from a Quantum SDK.
  • Workflow Modeler: Graphical configuration tool for quantum workflows.
  • Workflow Engine: Execution and orchestration engine for quantum workflows configured with a workflow modeler.
  • Quantum SDK: The quantum SDK contains common building blocks for quantum software such as circuits and types (e.g. qrisp's quantum variables), algorithm templates (e.g. VQE, QAOA, QPE) and optimisers (e.g. Adam or Rotosolve) for hybrid algorithms.

Important Interfaces

TODO

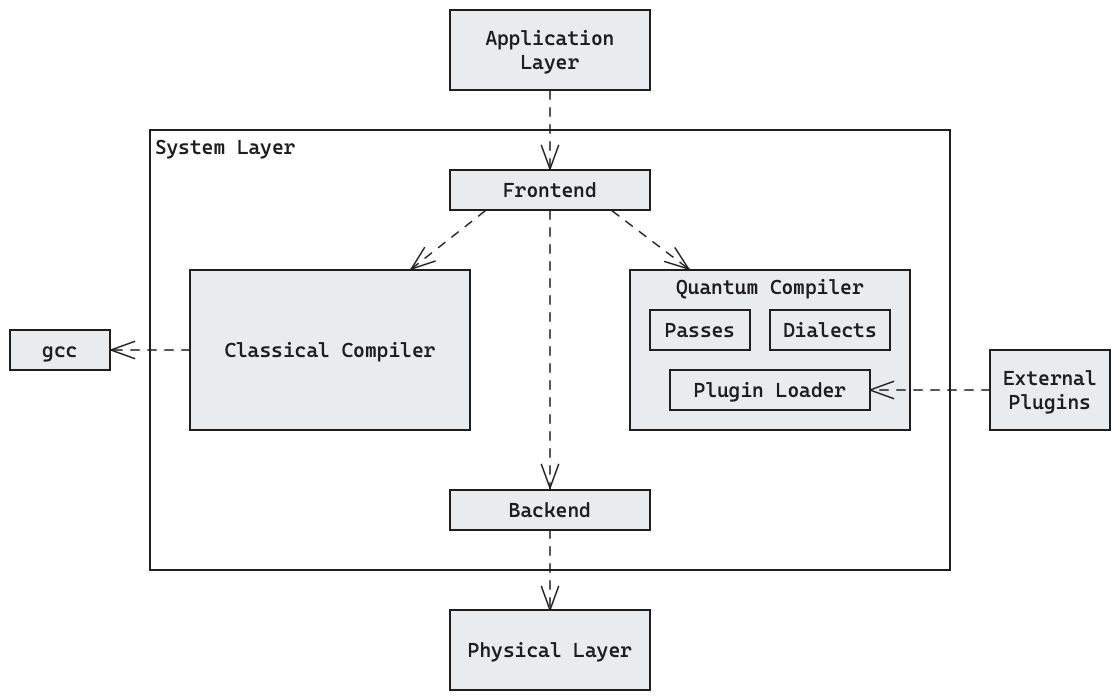

White Box System Layer

Motivation

The compiler is split into a quantum and a classical compiler to allow re-using existing, highly-optimised compiler infrastructure such as gcc while giving emphasis to extensibility in quantum compilation through a plugin system. The plugin system also allows integrating proprietary extensions to the compiler.

Contained Building Blocks

  • Frontend: Used as a facade; shields the core of the compiler from the details of the application layer. Frontend is to be understood as a programming language frontend for the compiler (cf. gcc's page on frontends), meaning frontends for different languages or SDKs could be integrated in the future.
  • Classical Compiler: Integrates established compiler infrastructure (e.g. gcc) to compile classical parts of the program with state-of-the-art optimisations.
  • Quantum Compiler: Compiles high-level specifications of quantum-kernels to low-level, device-specific instructions. The compilation process involves passes and dialects and it is extensible through a plugin system.
  • Backend: The backend is a bridge between the compiler and the physical layer.

Important Interfaces

TODO

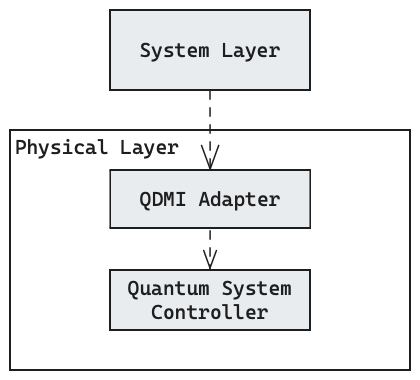

White Box Physical Layer

Motivation

The implementation of the physical layer will usually depend on the hardware architecture and vendor. As such, the key architectural characteristic here is to either have the vendor implement our interface towards the system layer, or to implement an adapter that translates our interface to the vendor's interface.

Contained Building Blocks

  • QDMI Adapter: This component provides the quantum device's characteristics via QDMI and acts as an adapter between the QDMI protocol and the device-specific Quantum System Controller.
  • Quantum System Controller: This component controls the physical quantum device, for example triggering lasers and sensors in superconducting hardware.

Important Interfaces

TODO
